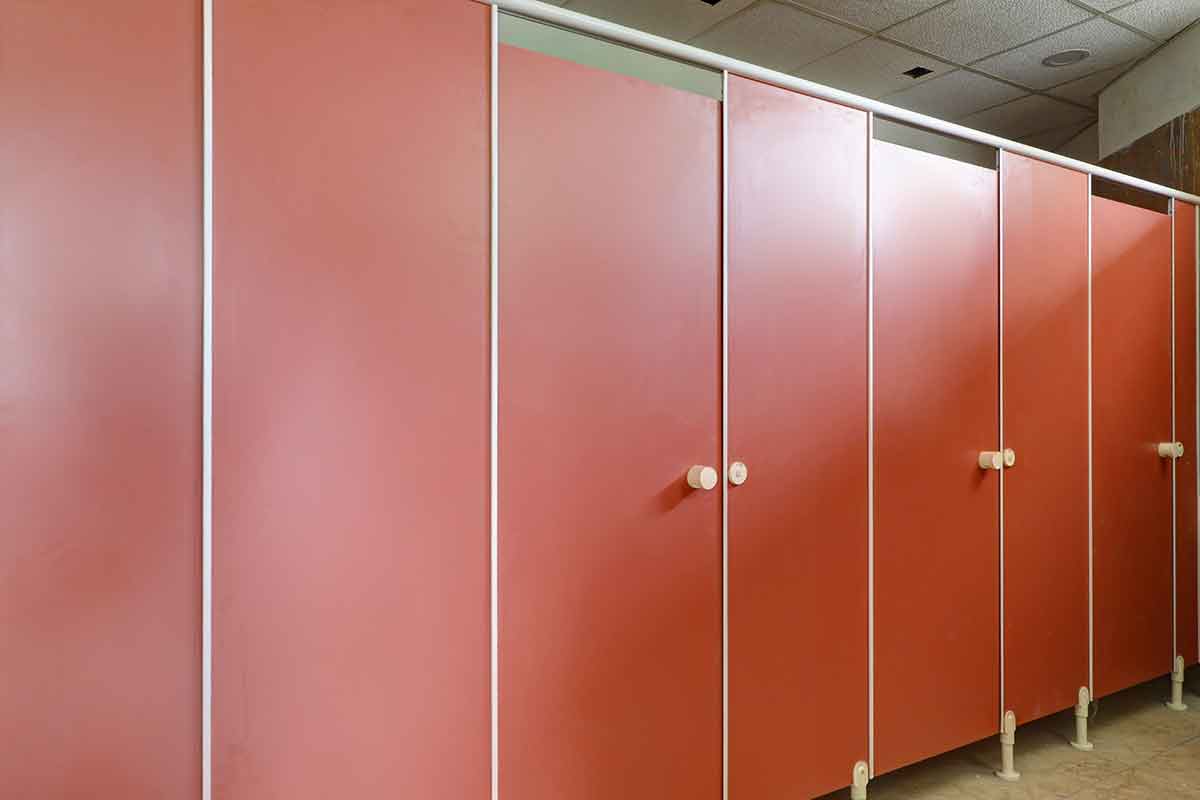

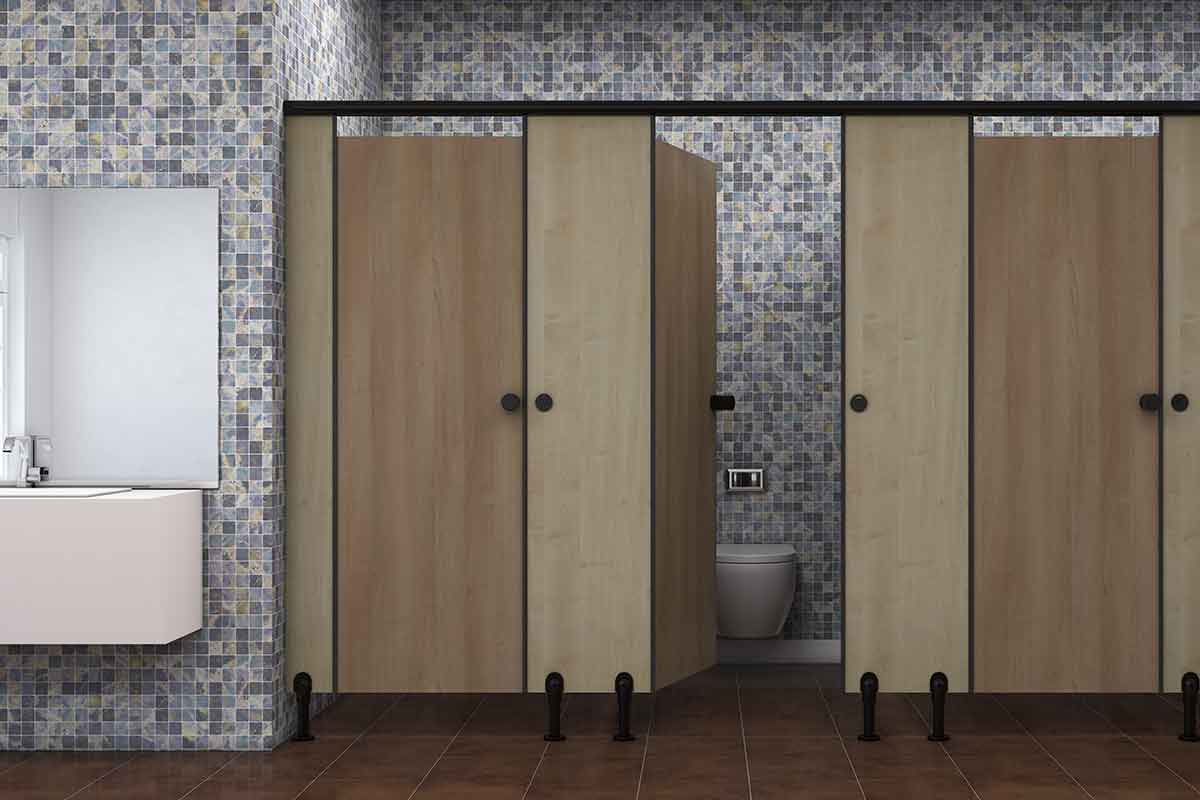

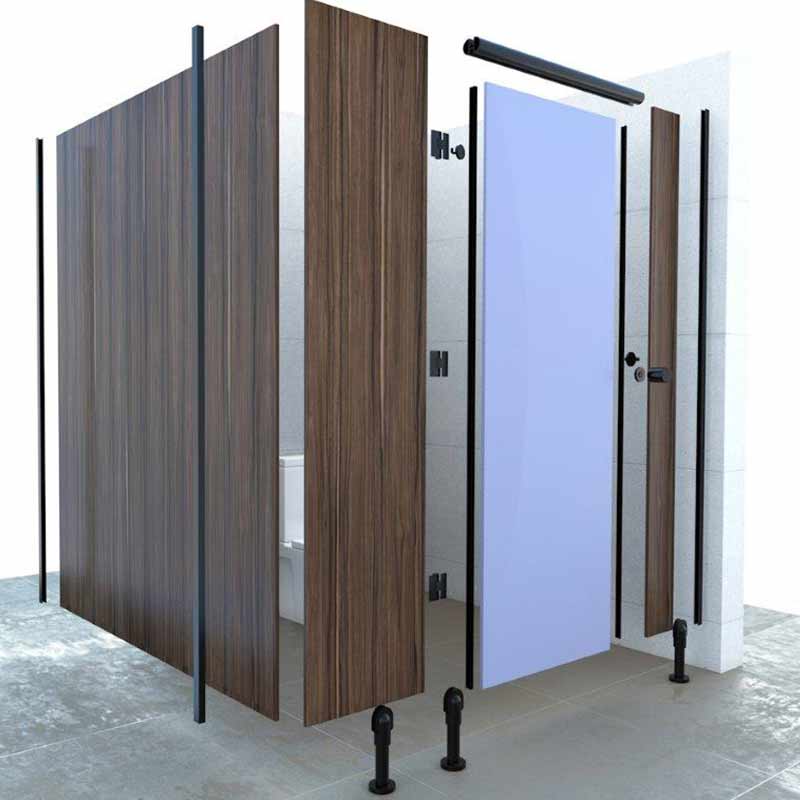

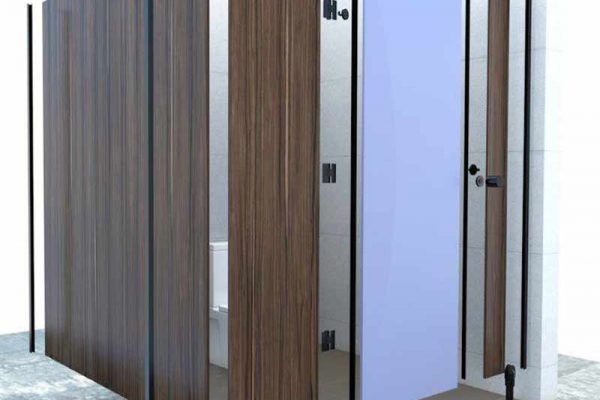

ZMS series is one of the unique offerings from Merino Restrooms which provides with the best of both worlds i.e. spectacular aesthetics and everlasting durability. This extensive series has changed the way restrooms were designed and is one of the most popular model among the customers. Available in wide range of designs, textures and hues, ZMS series gives the system a clean and lean look with extruded powder coated aluminium made top rail. The series gives a perfect solution to the customer without stretching their budget and compromising on quality. For the ZMS SS variant, all the major accessories are provided in stainless steel.
Colors & Finishes
Compact Laminate in panels.Made from solid grade compact high-pressure laminate as per IS:2046 and EN438- manufactured under high specific pressure > 5 MPa and temperature 120°C with bunch of kraft papers impregnated with thermosetting phenolic resin and decorative papers made of cellulose fibre impregnated with thermosetting melamine resin which provide superior scratch, abrasion, heat, chemical, impact, graffiti & moisture resistance along with anti-bacterial properties. Panels have a black core that when machined, presents a distinctive black edge.

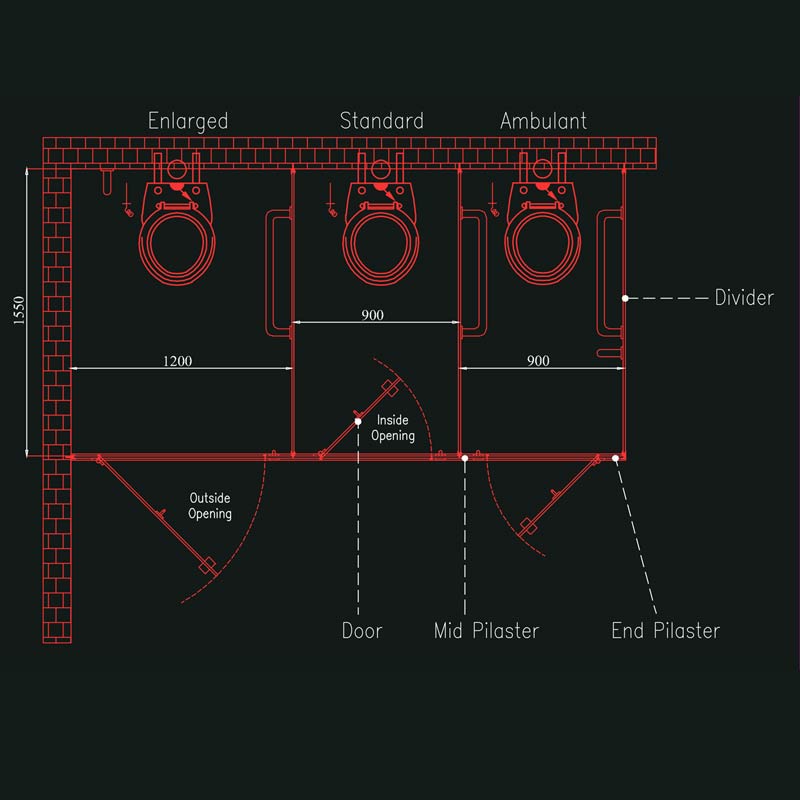

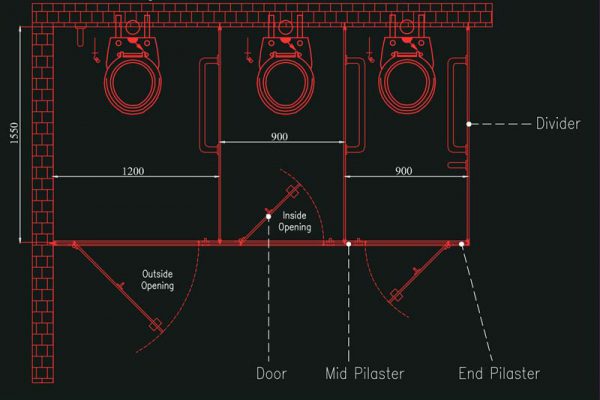

2003 x 900 x 1550 (H X W X D)
1750 x 600(H X W)

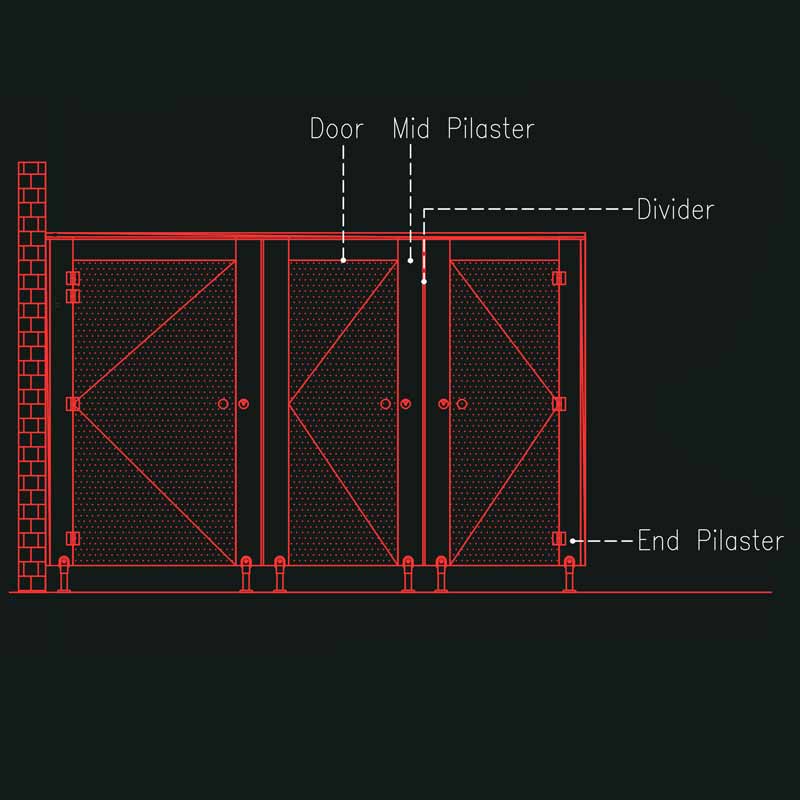

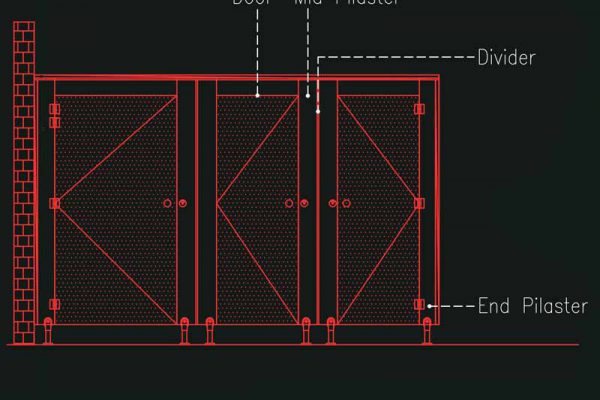

All doors will be of single colour and made of 12 mm thick Merino HPL compact panel. The doors will have chamfered edges. Each door will be supported by 3 Nylon PA6- made hinges affixed to the pilasters. Nylon PA6- made coat hook and lock set are provided with each door.
1830 x 300 (H X W)
All pilasters will be made of 12 mm thick Merino HPL compact panel with chamfered edge and completed with Nylon Pa6 made thumb turn lock set. Aluminium made door stopper profiles with rubber linings for dampening the noise while door closing will be provided at the vertical ends of the pilasters. Pilasters will be anchored to the floor using Nylon PA6- made adjustable legs. The bottom gap is 150-100 mm.
1775 x 1550 (H X W)

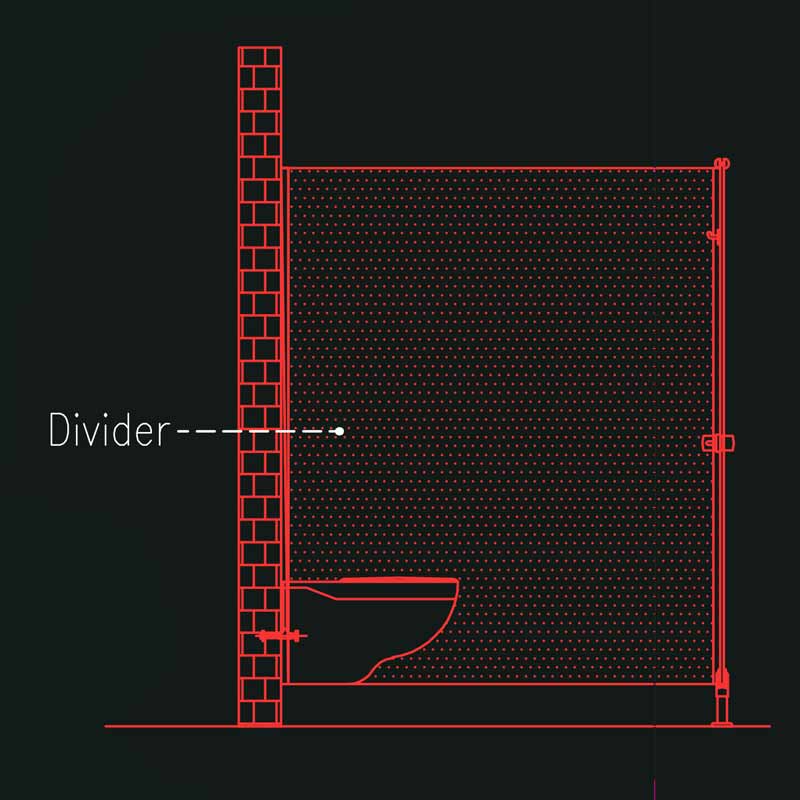

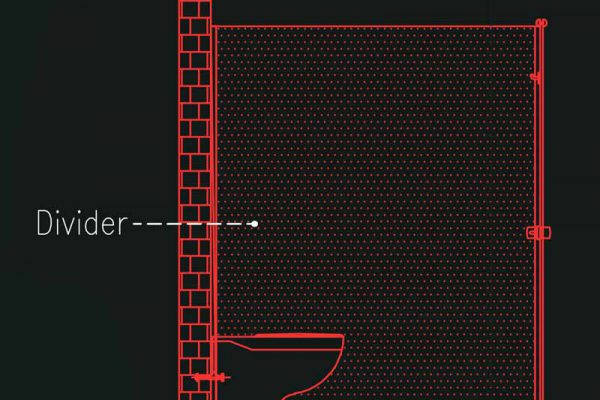

All intermediate partitions or dividers will be made of 12 mm thick Merino HPL compact laminate panels. They are affixed with aluminium made U-channel at their ends for ultimate stability of the system
Standard bottom gap is 150
All measurement in millimeters.
- Hardware and accessories is Nylon

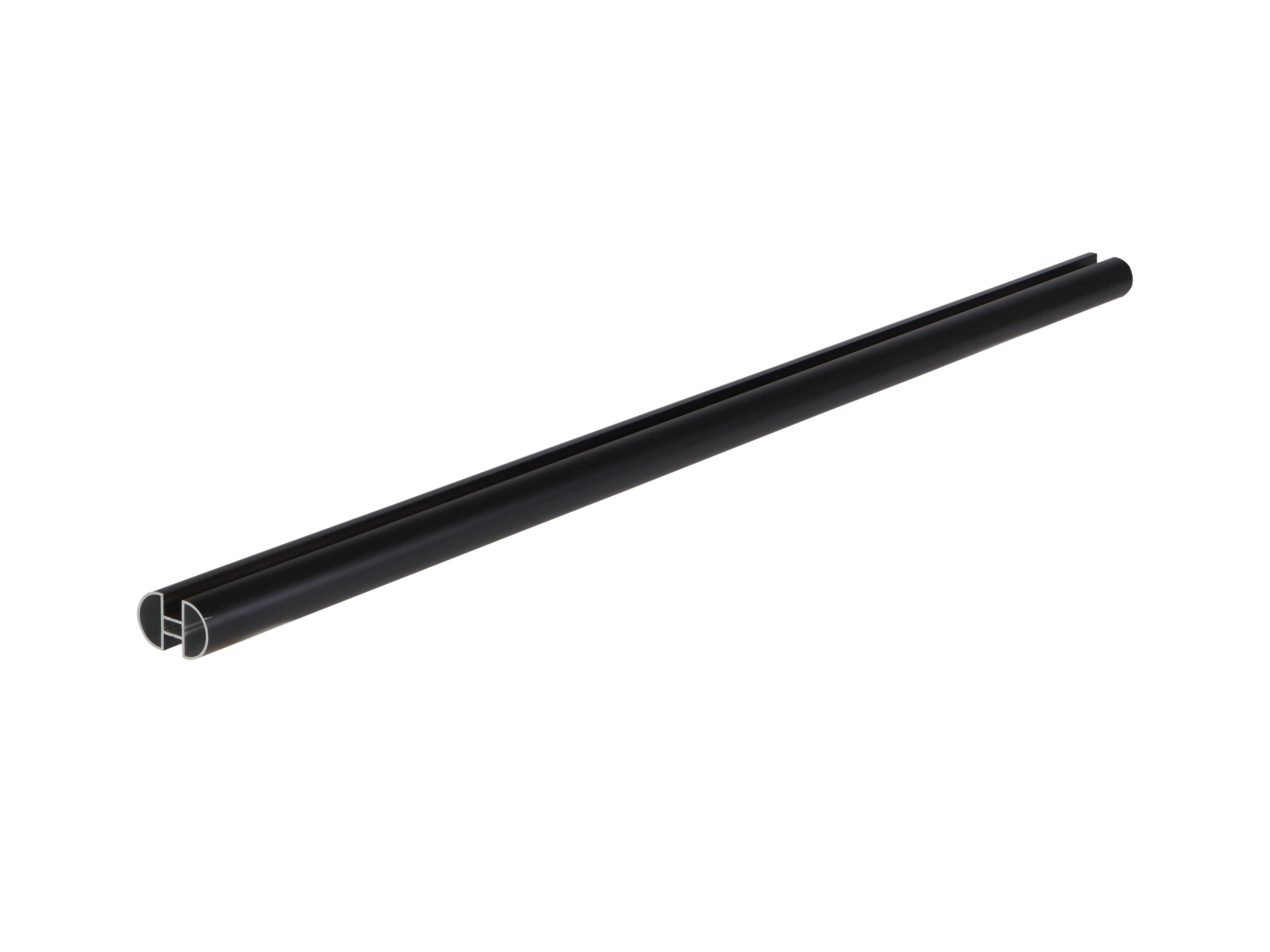

- Semi-spherical (Top) head frame structure for surface protection. Size to be 50mmx32mmx1.8mm. Corner joinery section, Size to be

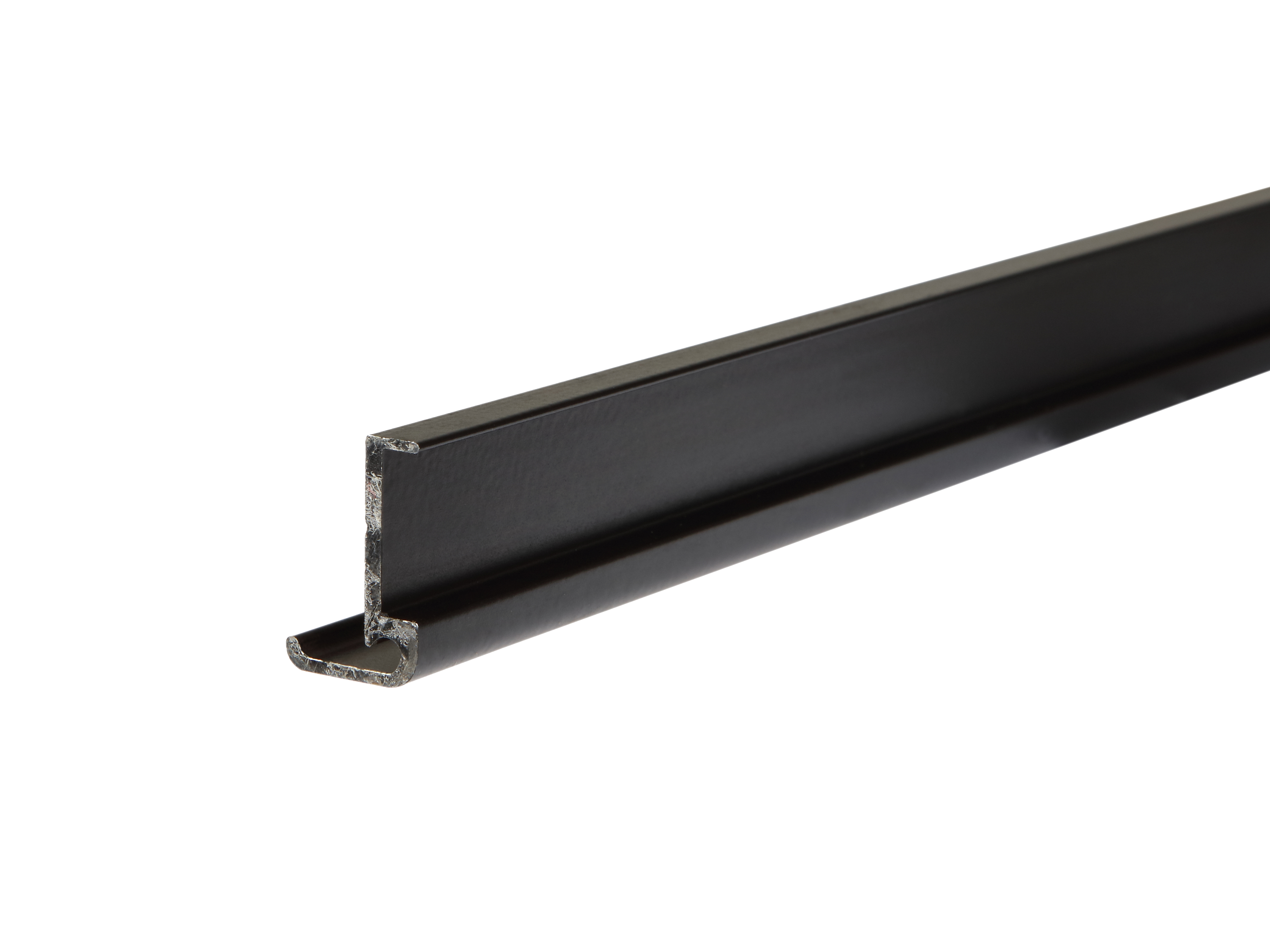

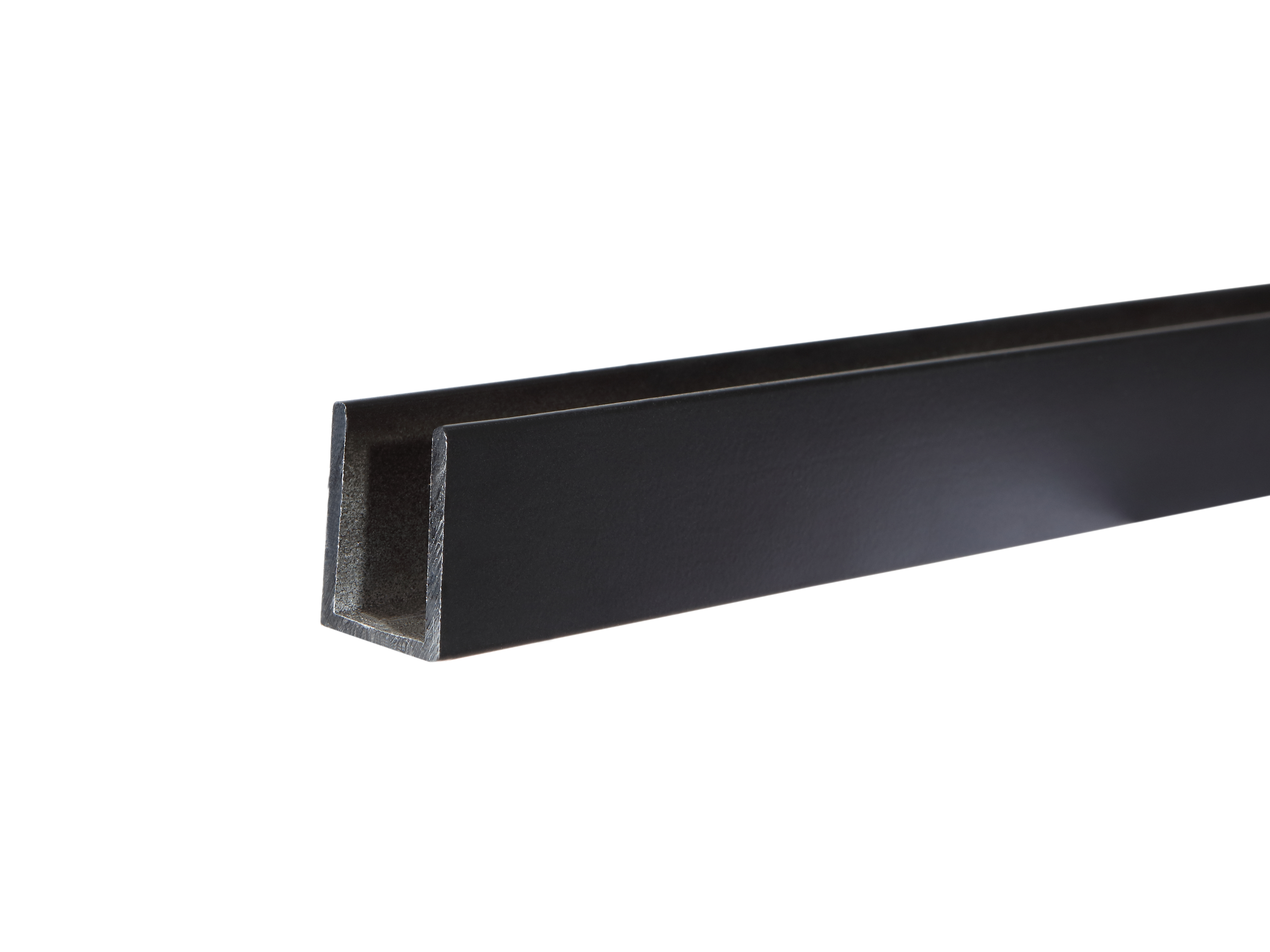

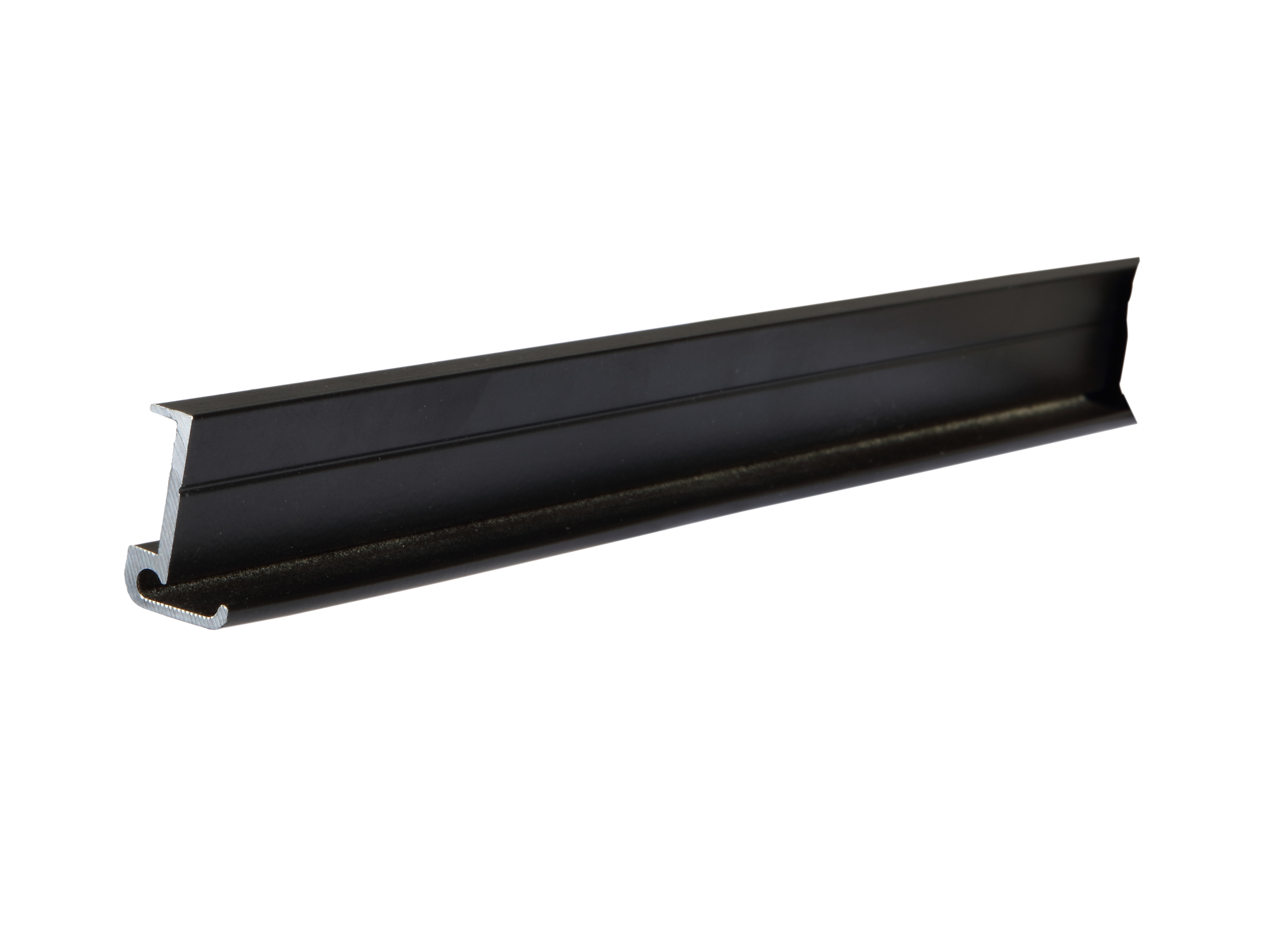

- 40mmx16.5mmx1.8mm. U-Channel Wall joinery section, Size to be 22mm x 16mm x 1.8mm. Door stopper section, Size to be 22mm x 12.5mm x 1.8mm.

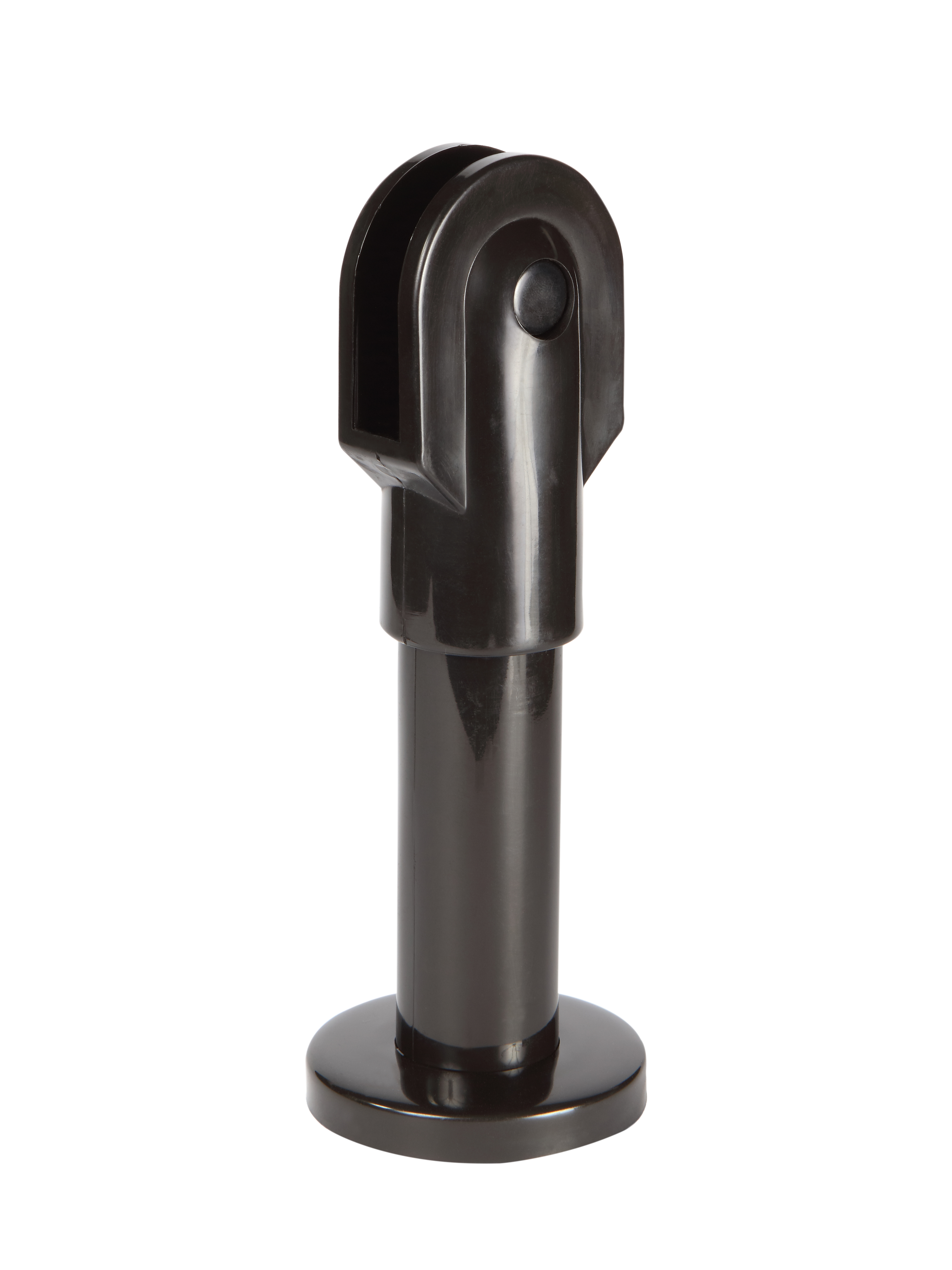

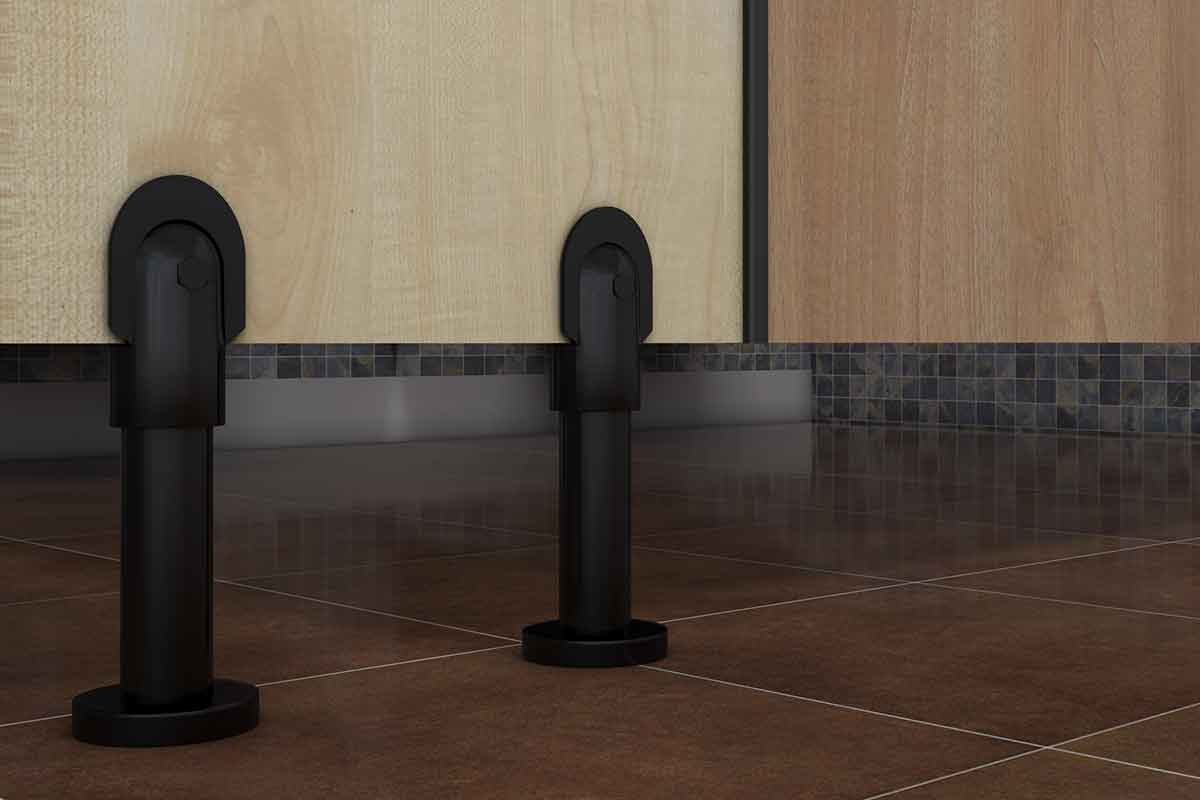

- Adjustable Palm Design Pedestal Footing of base diameter 70mm made from Nylon PA6 giving a clearance height of 150 mm.

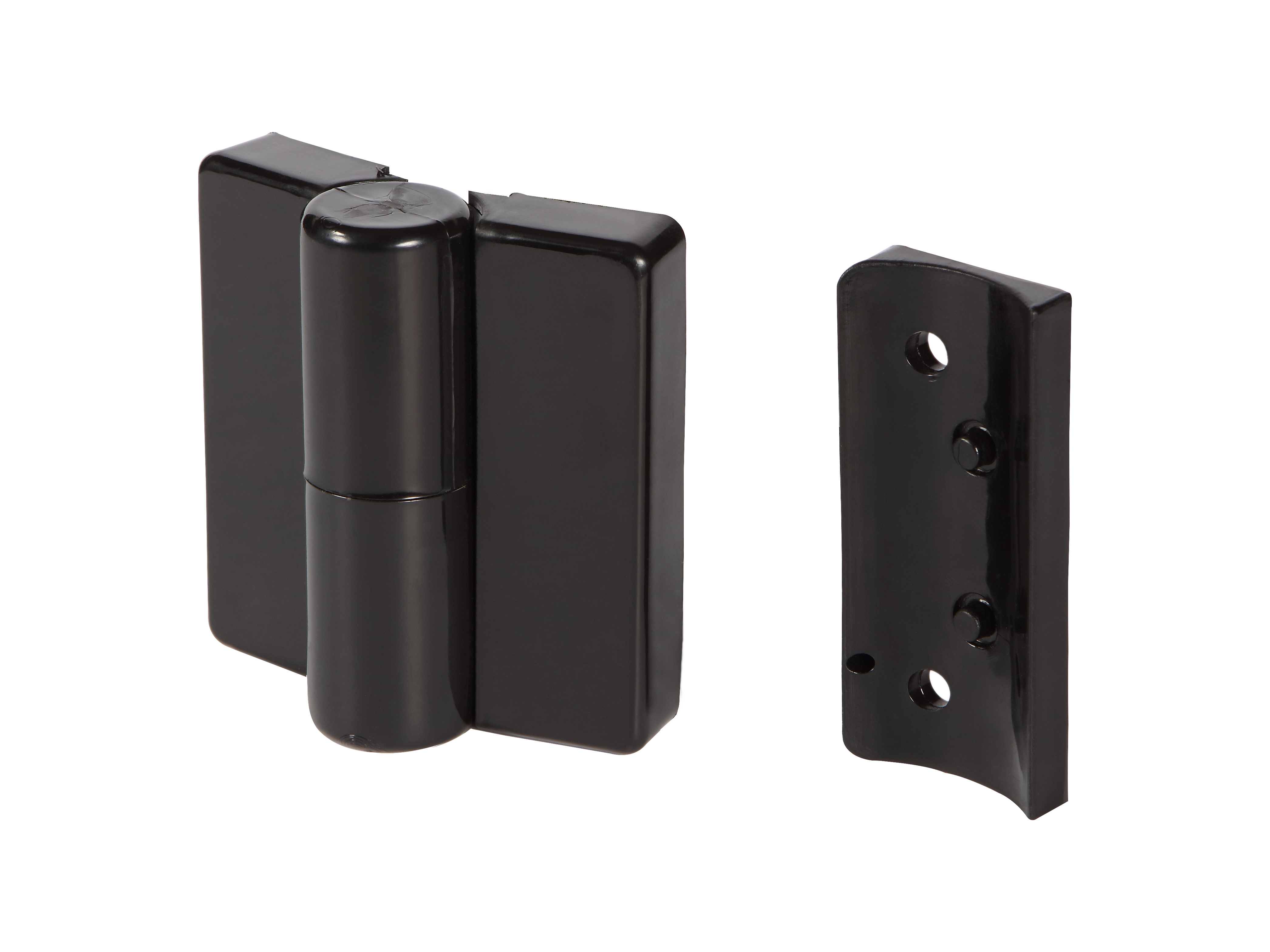

- Gravity hinges made of Nylon Pa6 to be used in doors.
- Coat hook made of Nylon PA6.

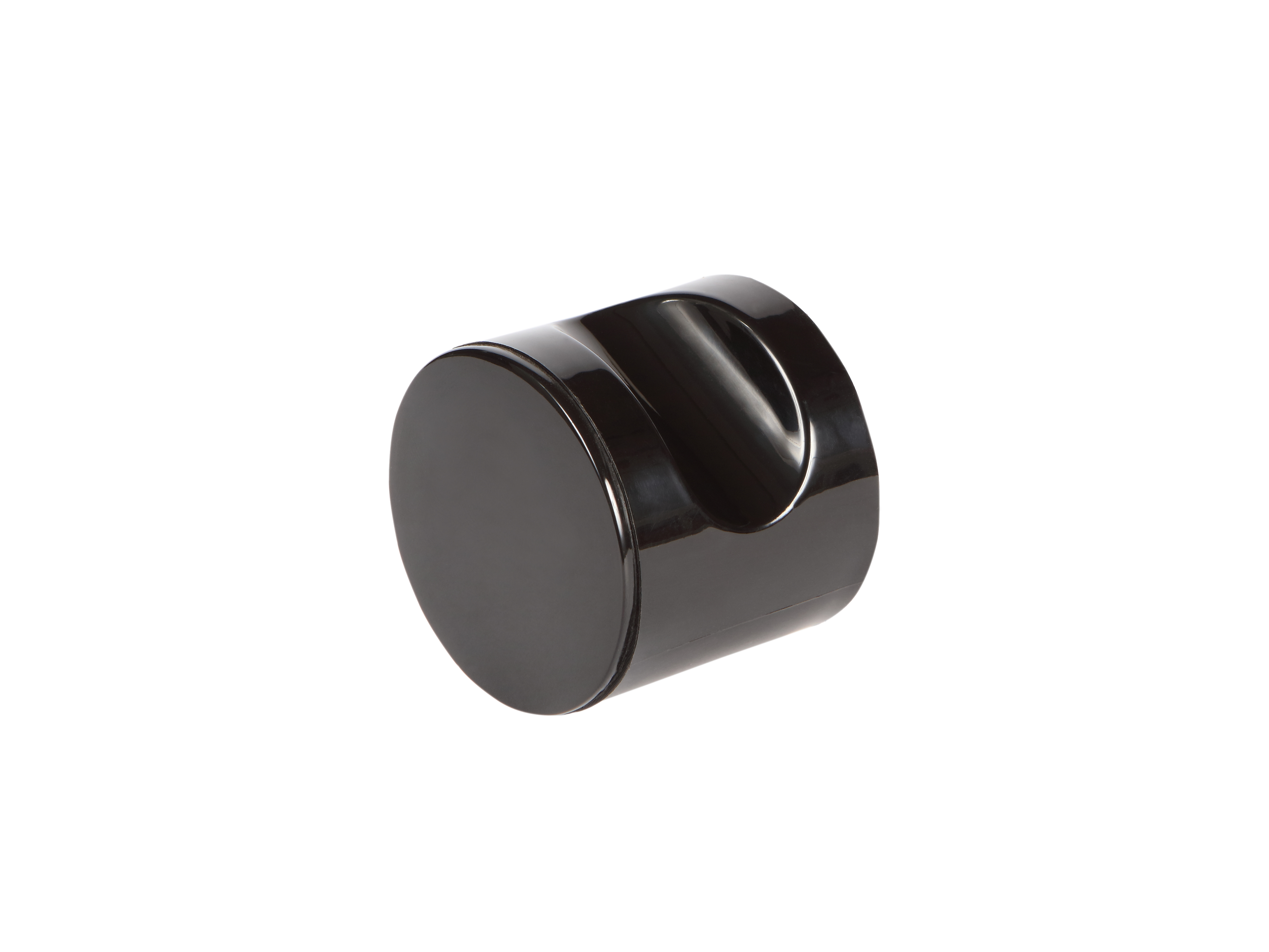

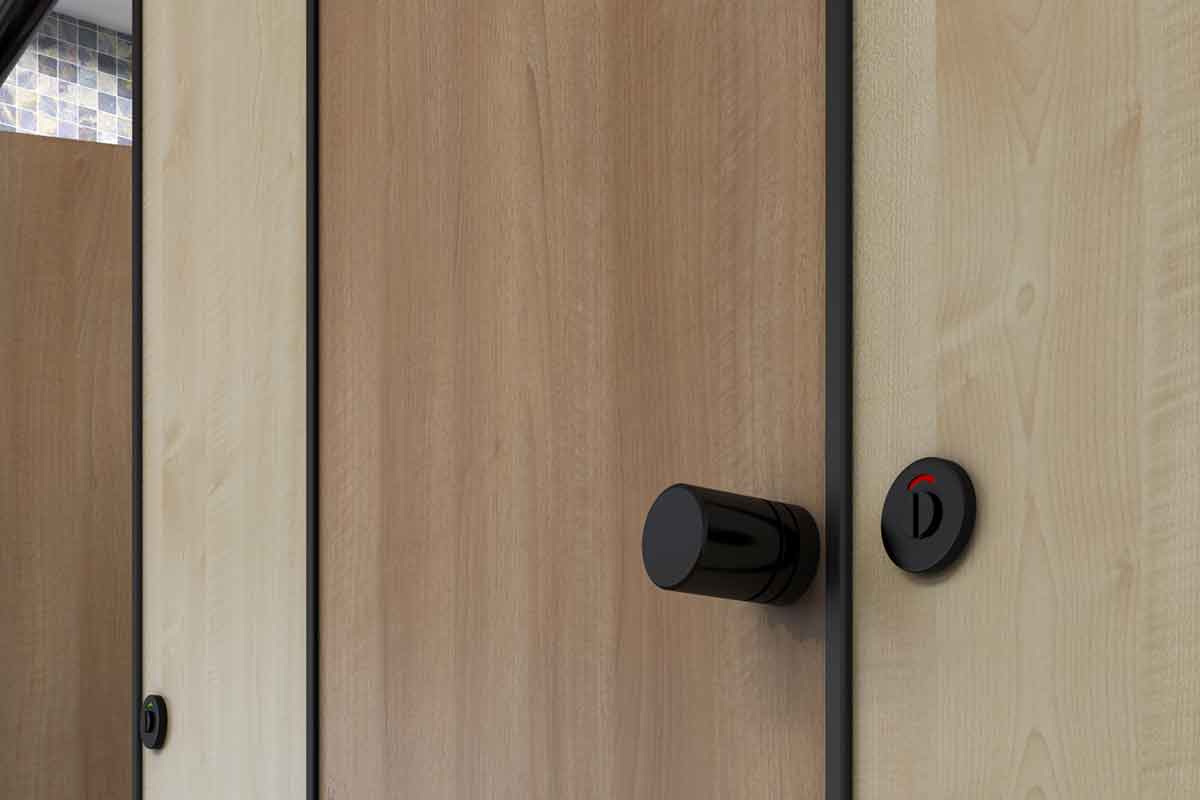

- Round Door knob diameter 52 mm with grooves for better hand grip made from Nylon PA6.

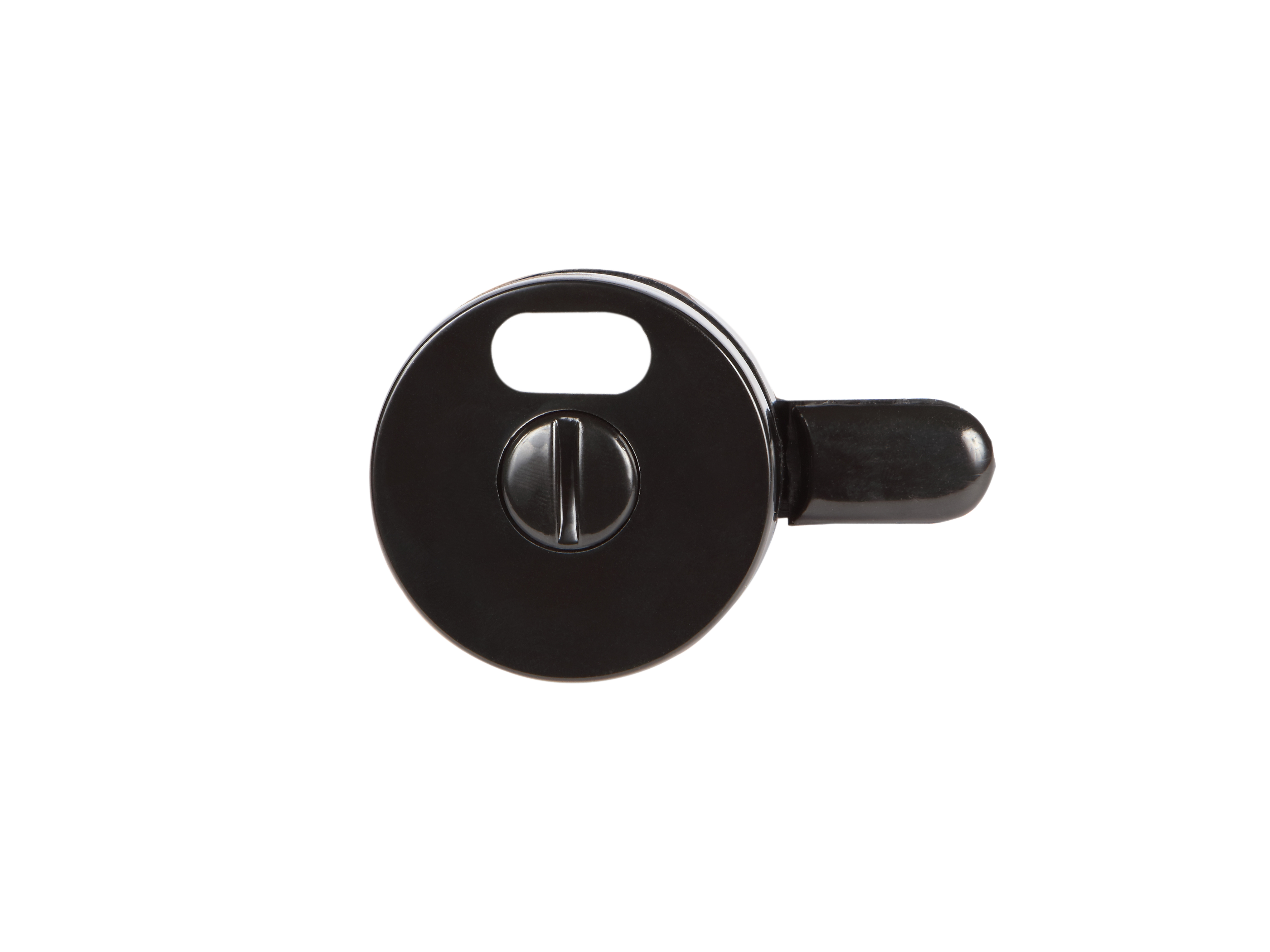

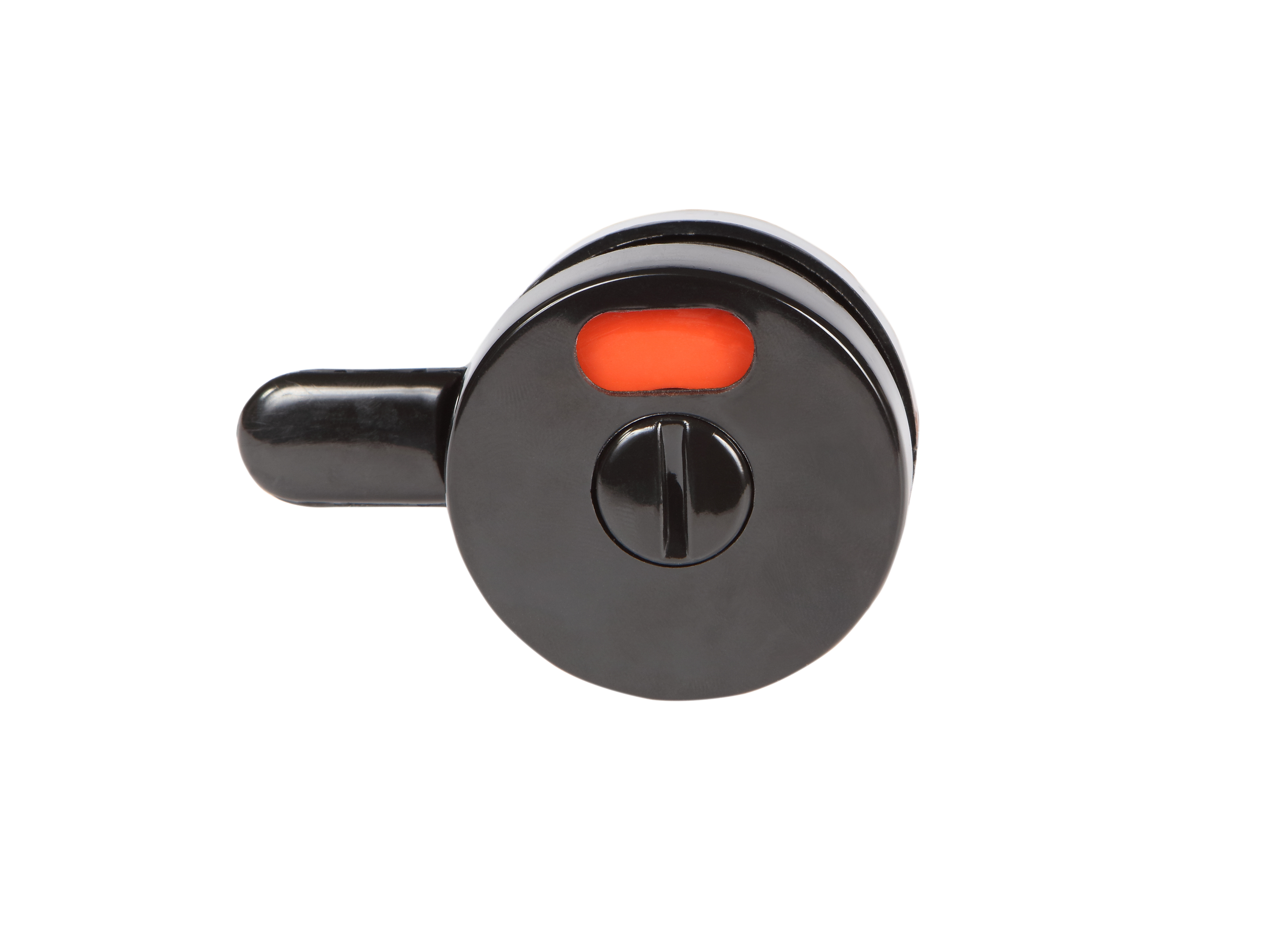

- Rotating Thumb-turn locking system with privacy indicator made from Nylon PA6.
- Stainless steel grade 304 screws.
- Anti-rotation Nylon polyamide grade6- expandable wall plugs.
- The Work shall complete as per drawing, under supervision of engineer in charge and company experts.
- Extruded grade aluminium alloy and epoxy powder coated (colour as per specifications).
