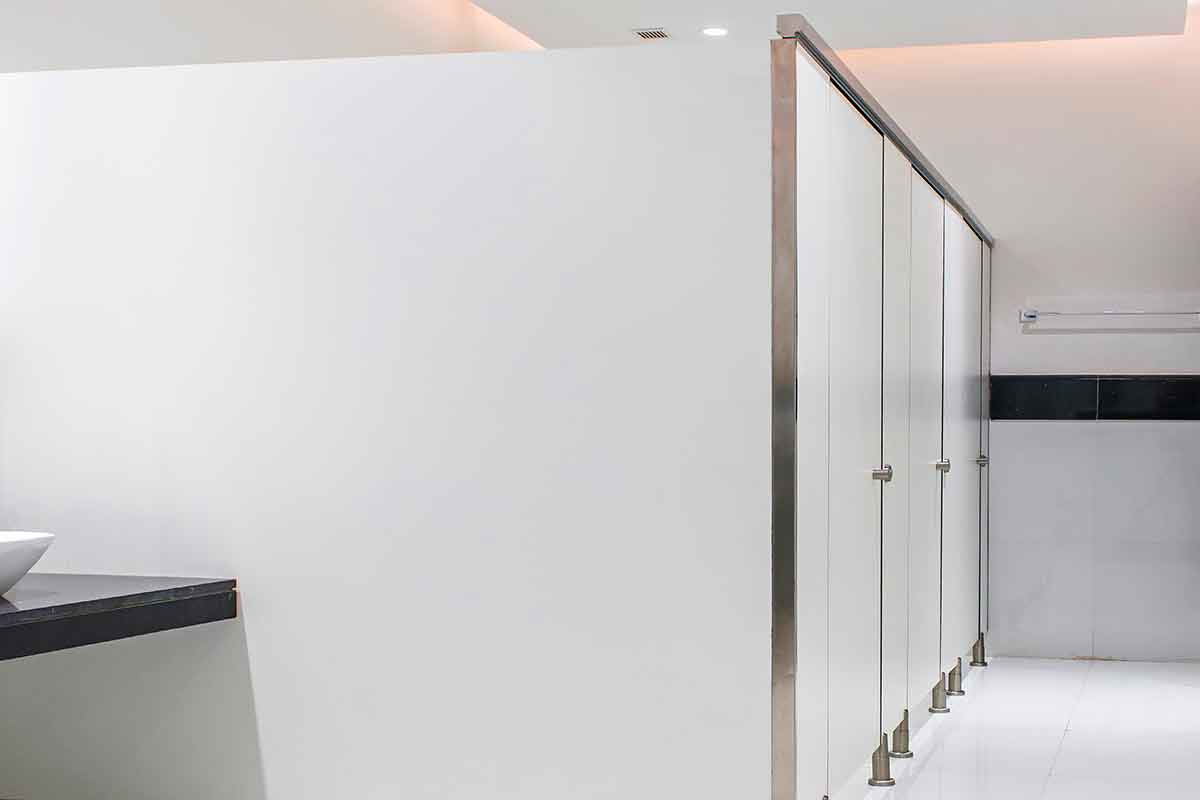

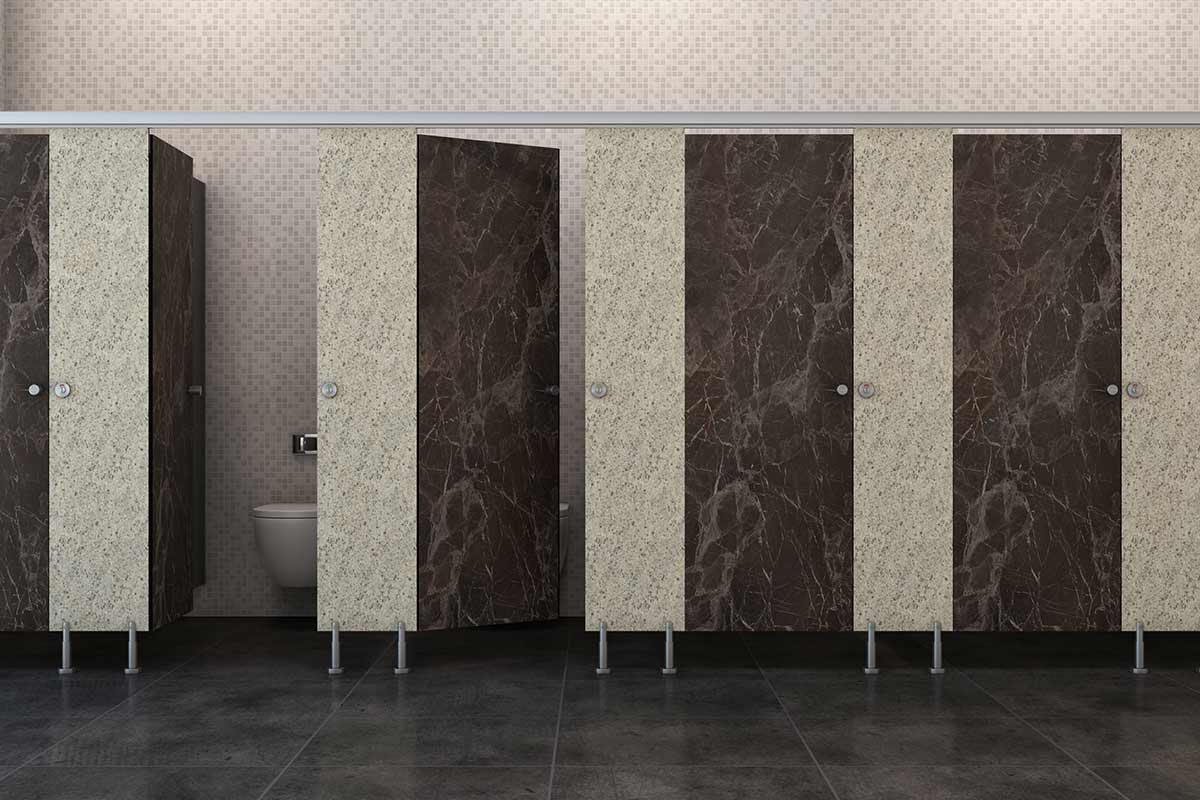

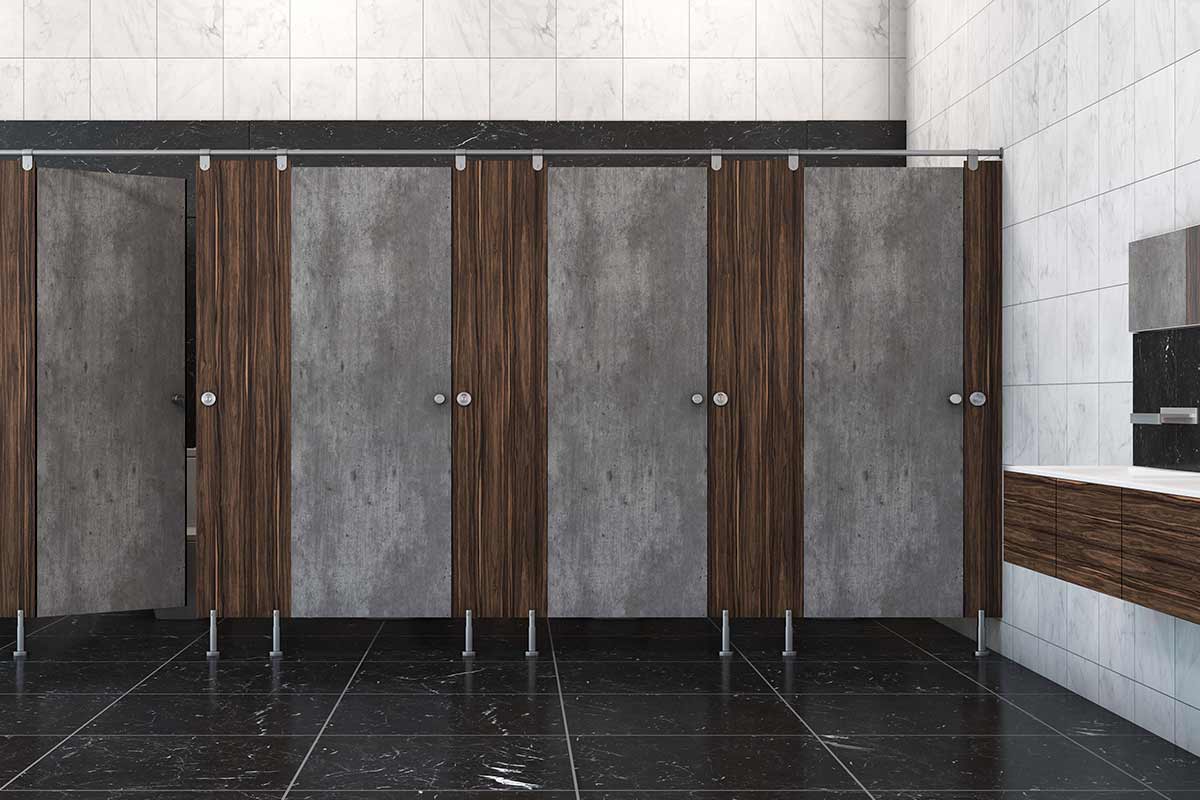

The exemplary look and seamless functionality of Titan Standard model has made it one of the most desired restroom cubicle solution in India. Sleek design and amazing ease of maintenance are the hallmark of this model. Titan Standard model comes with rectangular and round options of stainless steel made top rails. The stainless steel made top rails and other stainless steel made accessories coupled with flush closing of door give this model an extremely elegant look and rich functionality.

Fire Resistant
Fire Resistant
Abrasion Resistant
Abrasion Resistant
Anti Bacterial
Anti Bacterial
Scratch Resistant
Scratch Resistant
Durable
Durable
Easy Cleaning
Easy Cleaning
Graffiti Resistant
Graffiti Resistant
Impact Resistant
Impact Resistant

Colors & Finishes

Technical Specifications

Material

Compact Laminate in panels. Made from solid grade compact high-pressure laminate as per IS:2046 and EN438- manufactured under high specific pressure > 5 MPa and temperature 120° C with bunch of kraft papers impregnated with thermosetting phenolic resin and decorative papers made of cellulose fibre impregnated with thermosetting melamine resin which provide superior scratch, abrasion, heat, chemical, impact, graffiti & moisture resistance along with anti-bacterial properties. Panels have a black core that when machined, presents a distinctive black edge. Size of panels to be as per drawing.

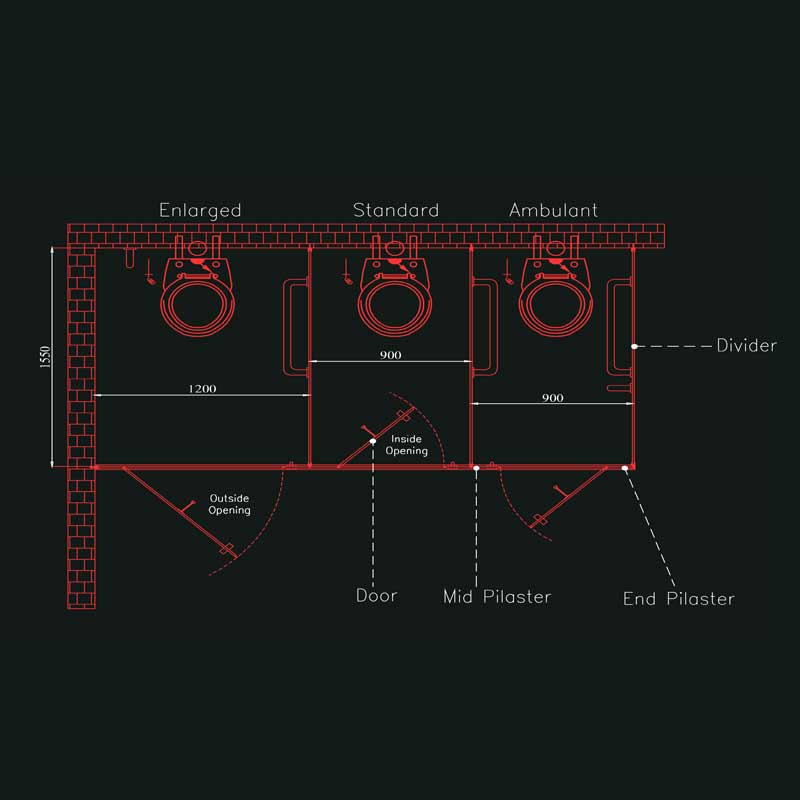

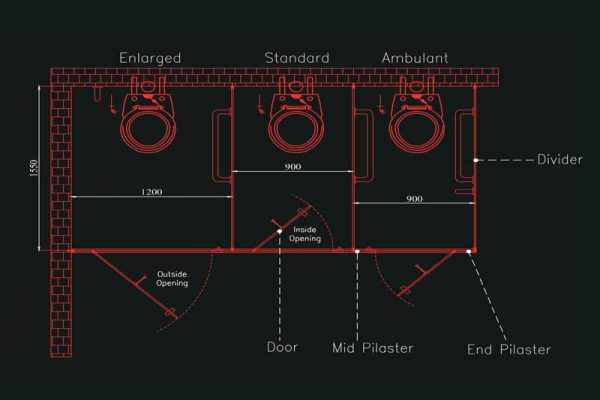

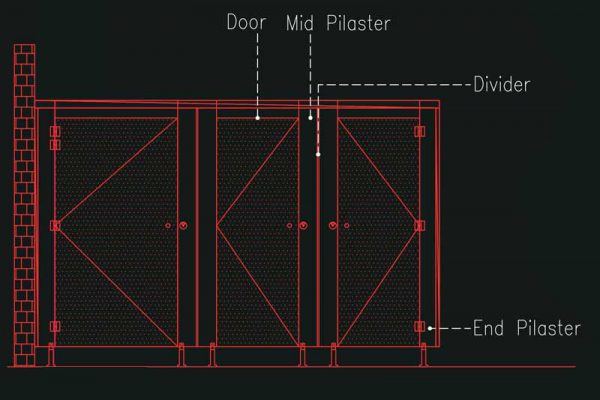

Standard dimension

1980 x 900 x 1550 (H X W X D)

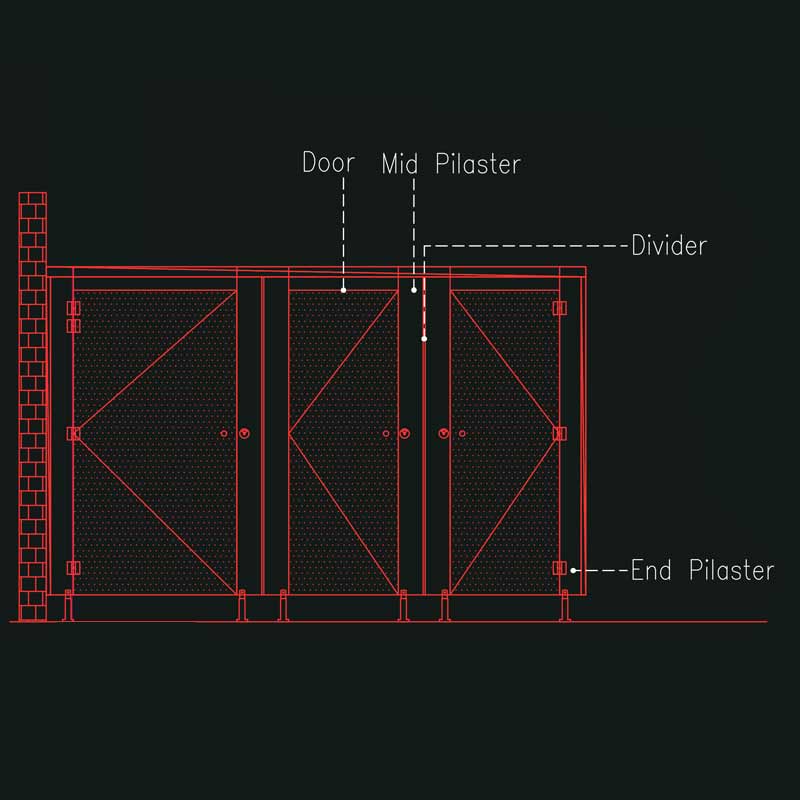

Standard door dimension

1750 x 600(H X W)

All doors will be of single colour and made of 12 mm thick Merino HPL compact panel. The doors will have chamfered edges. Each door will be supported by 3 stainless steel made hinges affixed to the pilasters. Stainless steel made coat hook and Lock set (comprised of Thumb turn and occupancy indicator) are provided with each door. All the doors will be routed at the vertical ends and the rubber sponge lining will be incorporated at the routed ends.

Standard pilaster dimension

1830 x 300 (H X W)

All pilasters will be made of 12 mm thick Merino HPL compact panel with chamfered edge and completed with stainless steel made thumb turn lock set. Pilasters will be anchored to the floor using stainless steel made adjustable legs. All pilasters will be routed at their vertical ends to facilitate closure of doors. The bottom gap is 150-100 mm.

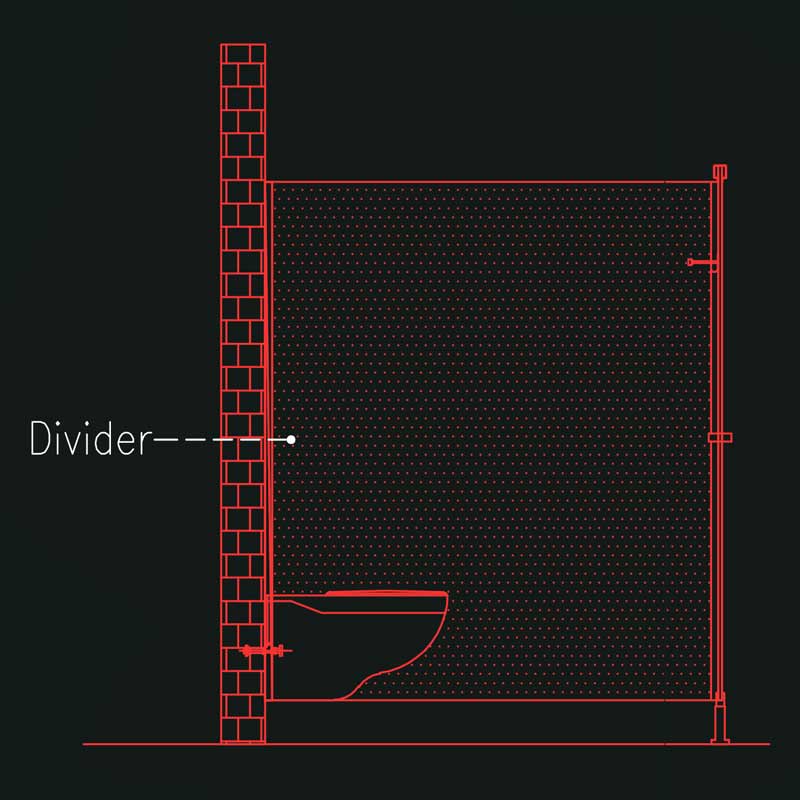

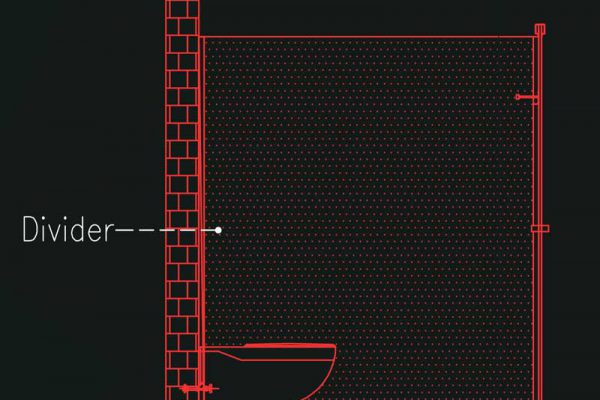

Standard divider dimension

1775 x 1550 (H X W)

All intermediate partitions or dividers will be made of 12 mm thick Merino HPL compact laminate panels. They are affixed with stainless steel made U-channel at their ends for ultimate stability of the system..

Standard bottom gap

Standard bottom gap is 150

All measurement in millimeters.

Accessories

  • Hardware and accessories in Stainless Steel

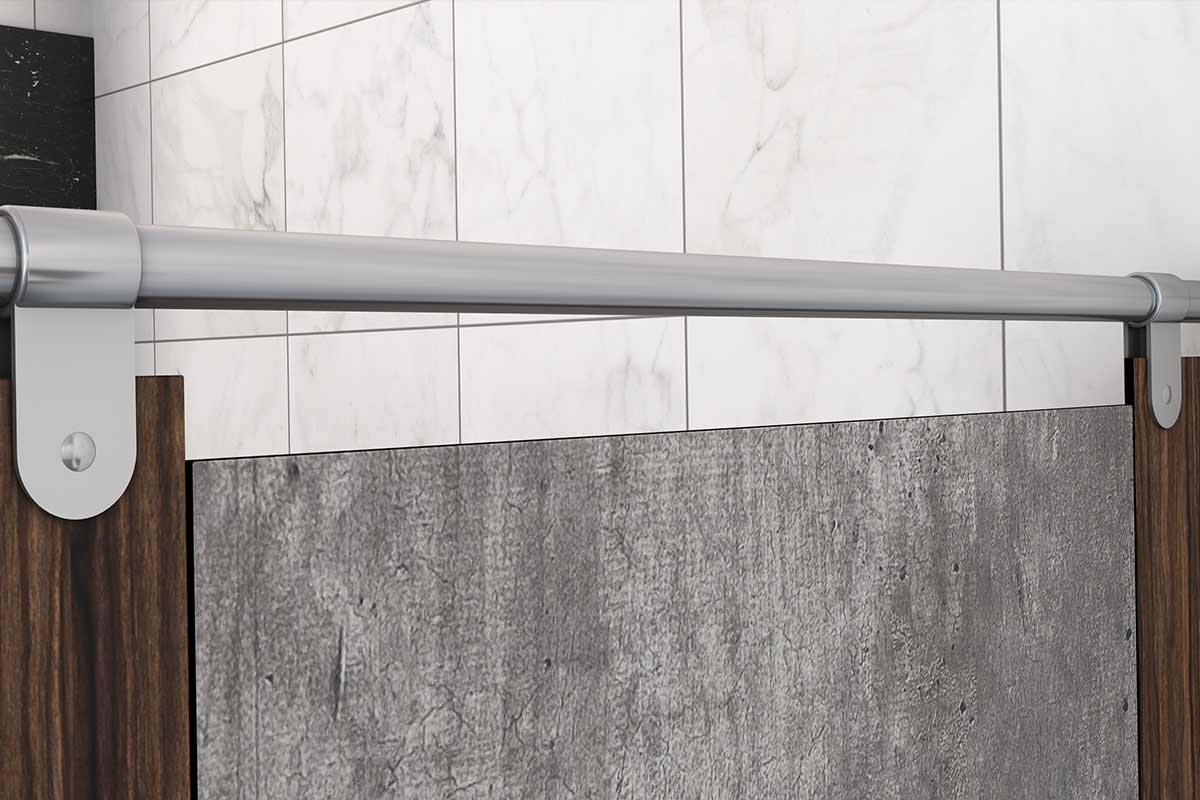

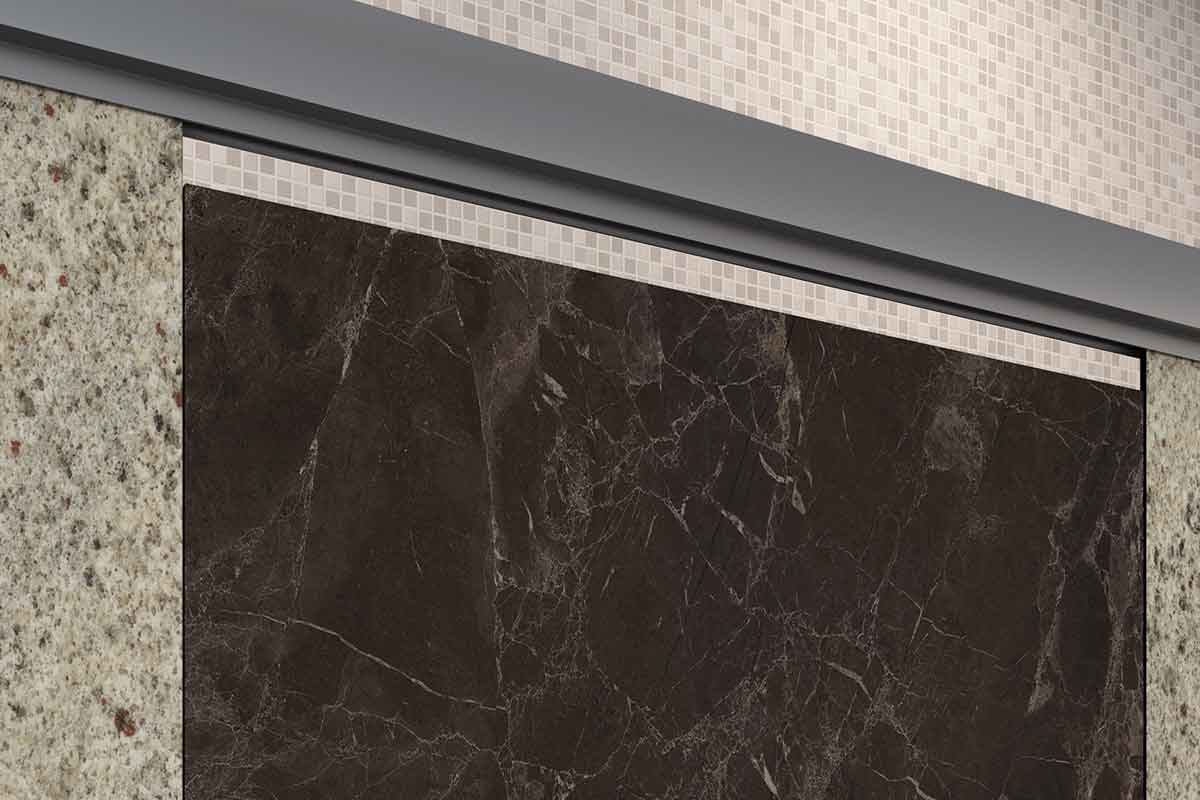

  • Top rail is made of stainless steel grade 304. There are two options for the top rail. First one comes with a rectangular cross section (Size to be 55mm x 42mm x 1.6 mm) and the other one comes with circular cross section (Diameter 32 mm). Surface finish will be brush type. A thin plastic film is pasted for surface protection.
  • Corner joinery section made from Stainless steel grade 304. Surface finish to be brush type. A thin plastic film pasted for surface protection. Size to be 35mm x16.4mm x 0.8 mm.
  • Wall joinery section with hamming profile made from Stainless steel grade 304. Surface finish to be brush type. A thin plastic film is pasted for surface protection. Size to be 21mm x 16mm x 0.8 mm.

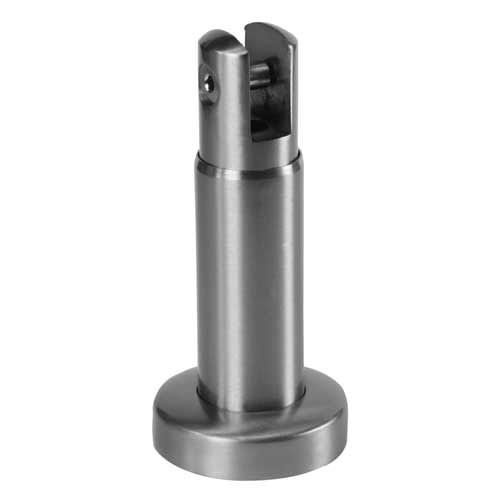

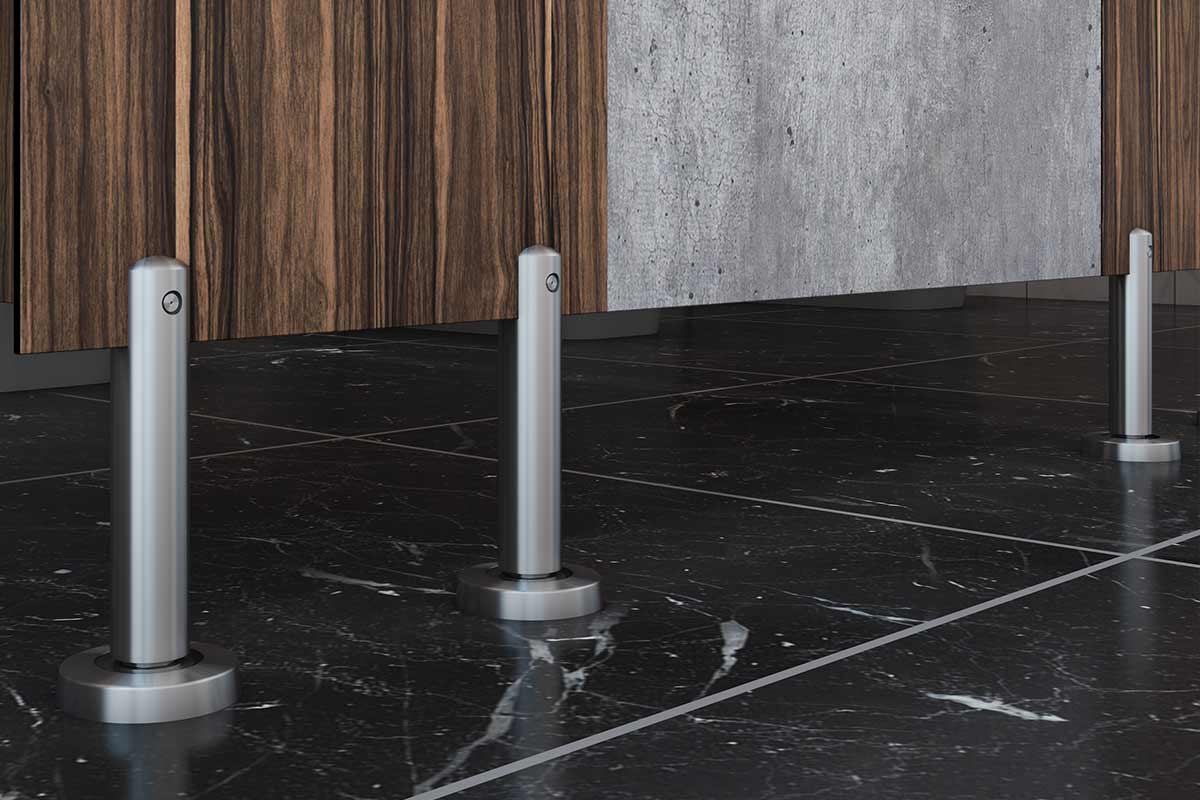

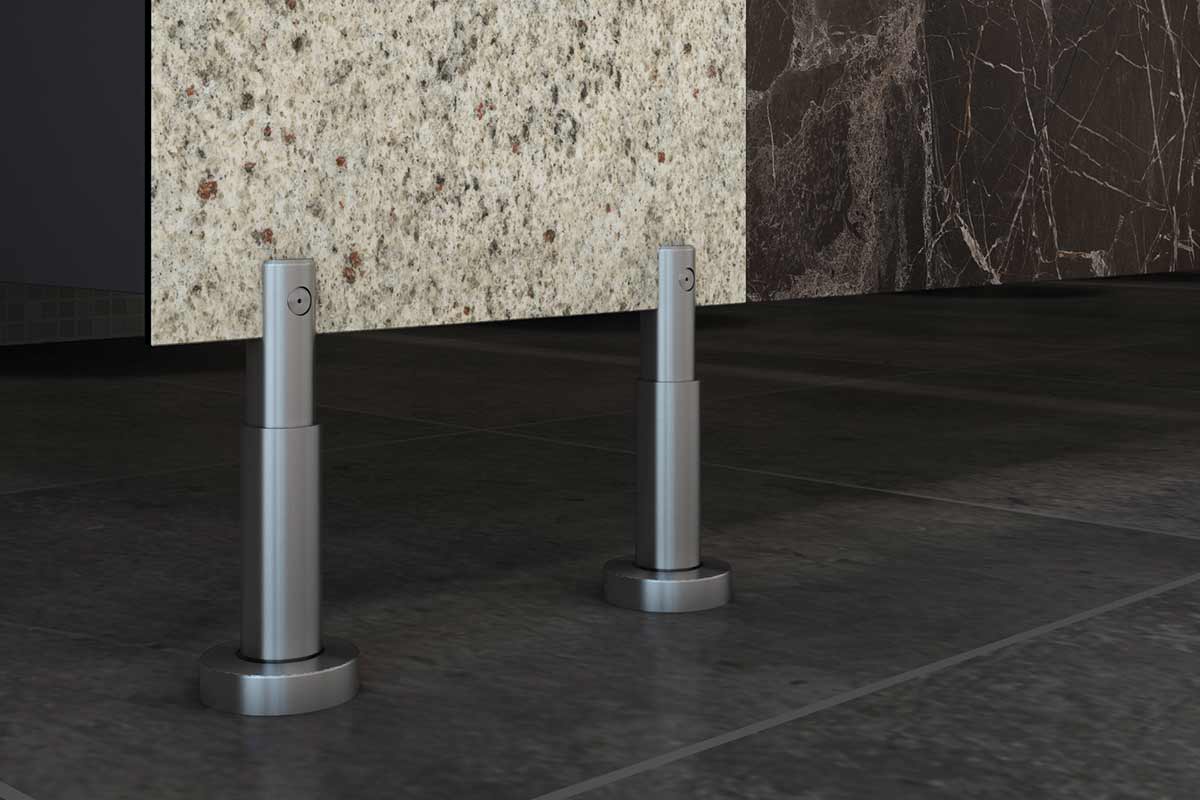

  •  Adjustable Pedestal Footing of base diameter 60 mm made from Stainless steel grade 316 giving an adjustable height of 100mm to 150mm. Surface finish to be matt type.
  • Spring loaded Butt Hinges made from Stainless steel grade 304. Surface finish to be matt type. Covers to be lacquer coated.
  • Coat hook with rubber stopper made from Stainless steel grade 304. Surface finish to be lacquer type.
  • Round Door knob diameter 30 mm with grooves for better hand grip made from Stainless steel grade 304. Surface finish to be matt type.
  • Rotating Thumb-turn locking system with privacy indicator made from Stainless steel grade 304. Surface finish to be lacquer type.
  • Anti-noise rubber padding of thickness 2 mm and width 10 mm
  • Stainless steel grade 304 screws.
